Product Description

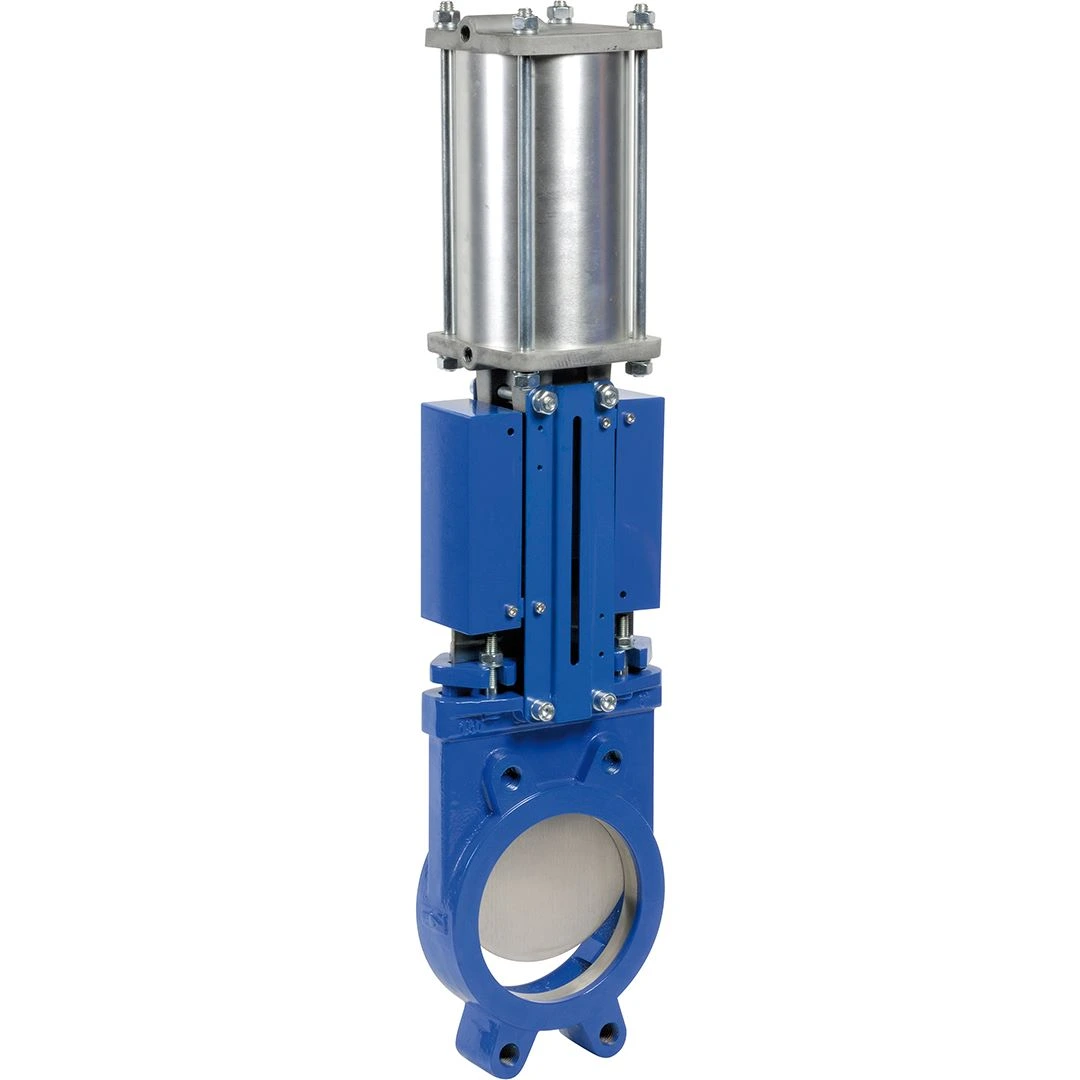

The Pneumatic Actuated Knife Gate Valve (BIAV-PAKGV-436) is engineered for handling slurries, viscous fluids, and bulk solids in demanding industrial environments. Its sharp-edged gate cuts through media, ensuring reliable shutoff even in abrasive or clog-prone pipelines. Actuation is automated by pneumatic cylinders, providing rapid and consistent operation.
With stainless steel or ductile iron construction, the BIAV-PAKGV-436 ensures durability against corrosion and wear. Its design minimizes downtime by allowing easy maintenance and seal replacement without removing the valve from the pipeline. The pneumatic actuator provides fast cycle times and can be configured for double-acting or spring-return fail-safe operation.
Suitable for mining, wastewater, pulp and paper, and chemical processing, this valve offers efficiency, precision, and reliability in critical flow systems. All units are factory-tested and supplied with full material traceability documentation.
Pneumatic Actuation
Rapid, consistent operation via pneumatic cylinder double-acting or spring-return fail-safe.
Sharp-Edged Gate
316L SS gate cuts cleanly through slurries, fibrous media, and bulk solids.
Easy Maintenance
Top-entry design allows seal and packing replacement without line removal.
Corrosion Resistant
Stainless steel or ductile iron construction for aggressive media and environments.
Full Technical Specifications
| Product Number | BIAV-PAKGV-436 |
| Series | PAKGV Pneumatic Actuated Knife Gate Valve |
| Size Range | 2" 72" (DN50 DN1800) |
| Pressure Rating | ~150 PSI (PN 10) |
| Body Material | Cast Steel, Ductile Iron, Stainless Steel |
| Seat Type | Resilient seated / Metal seated |
| Actuation | Pneumatic Cylinder (double-acting / spring-return) |
| Gate Material | 316L Stainless Steel (standard) |
| Control | Solenoid valve, 420 mA positioner optional |
| End Connection | Flanged EN 1092 / ASME B16.5 |
| Factory Test | Hydrostatic shell & seat test per EN 12266 |
Lead Time: 48 weeks standard. Special materials or large bore 814 weeks.
Common Applications
Mining & Minerals
Slurry and tailings isolation in mineral processing and extraction facilities.
Wastewater Treatment
Sludge, effluent, and screenings control in municipal treatment plants.
Pulp & Paper
Fibrous stock and chemical media control in pulp processing lines.
